Hynds PERFECT® Manhole

Enquire Now

The Hynds PERFECT® Manhole Base is a watertight pre-benched flanged-based manhole that can be customised to suit a variety of diameters, depths and inlet/outlet configurations.

Perfect Logo

Download Order Form

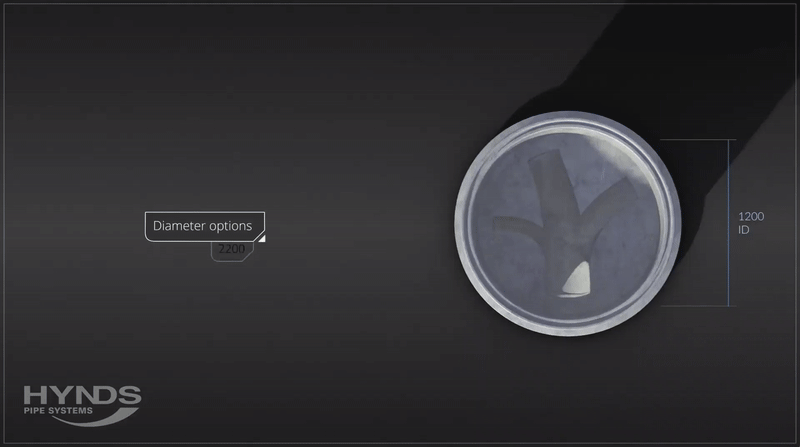

Available in diameters DN1050 & DN1200 and all the heights from 900mm high to 2400mm high.

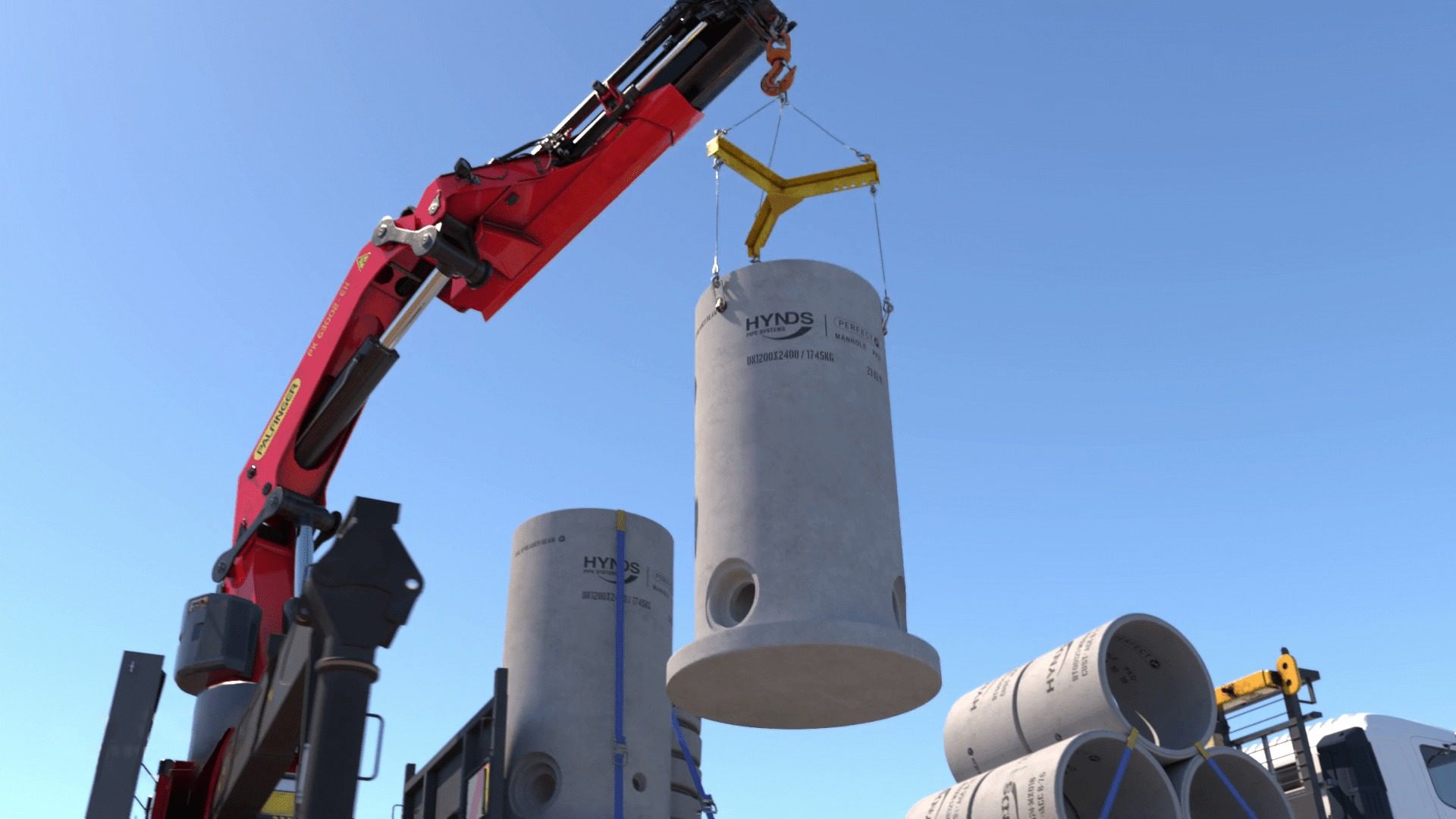

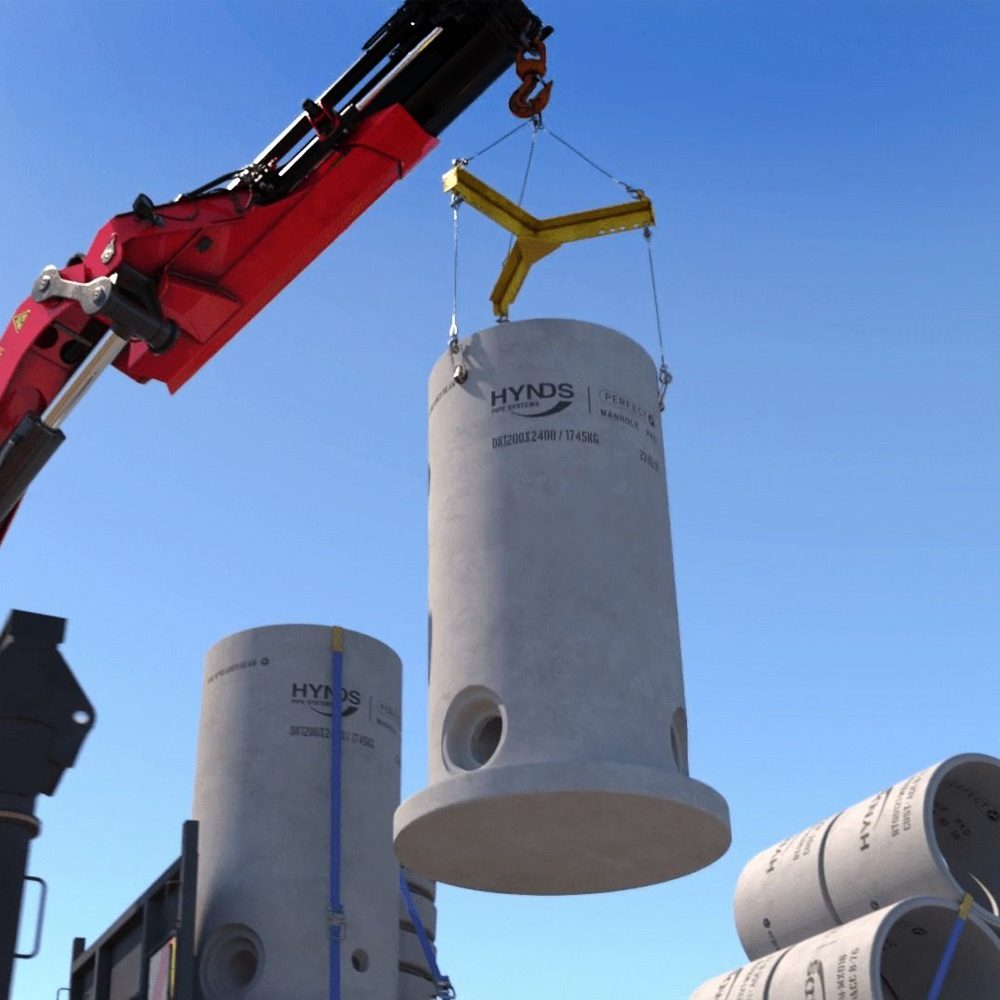

The Hynds PERFECT® Manhole System range is a revolution in manhole technology. This improved range of Concrete Manholes is manufactured in our state-of-the-art site in Pokeno, Auckland. The Hynds PERFECT® Manhole is a pre-benched manhole base with an already cast-in pipeline inlet and outlets based on your requirements.

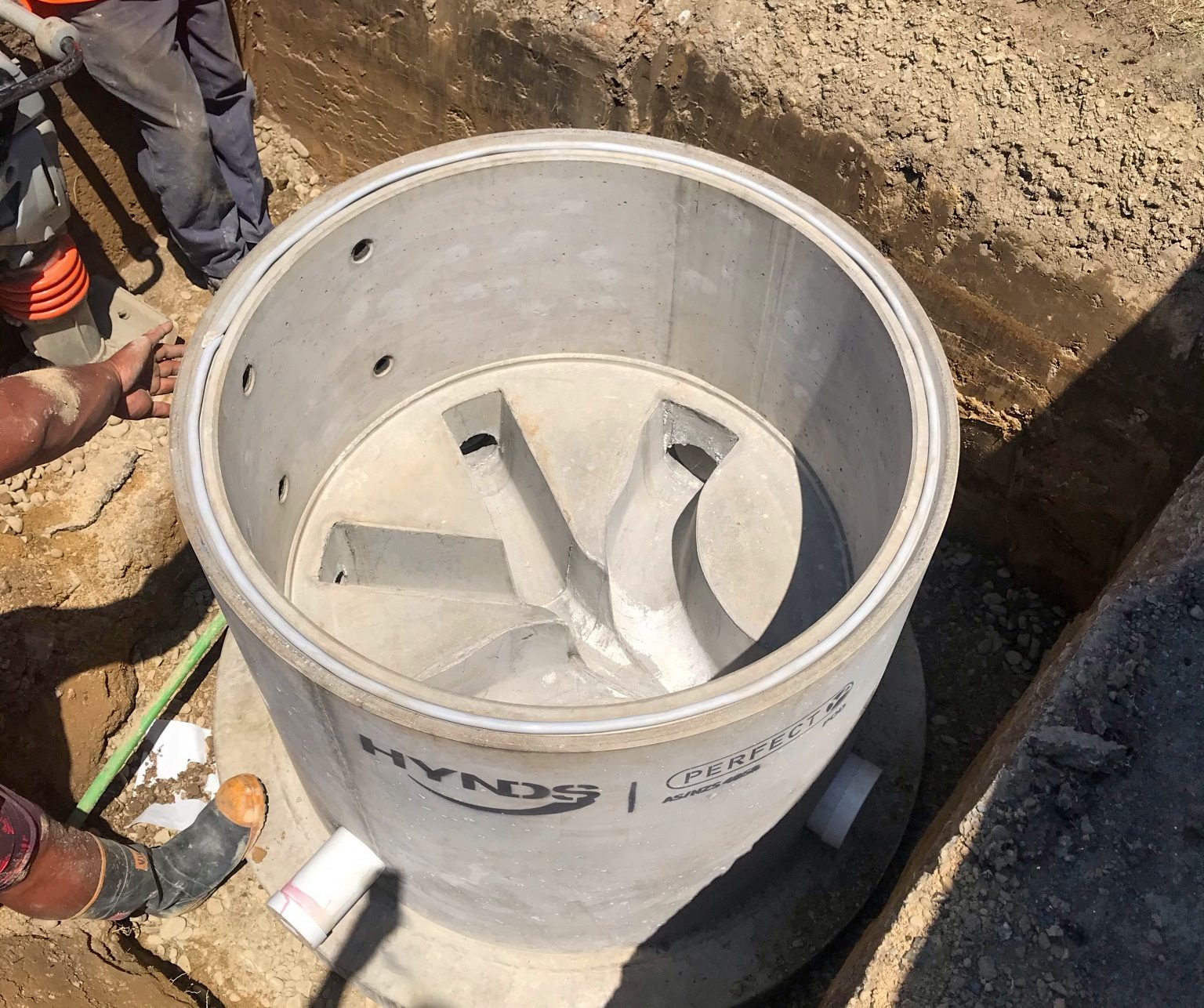

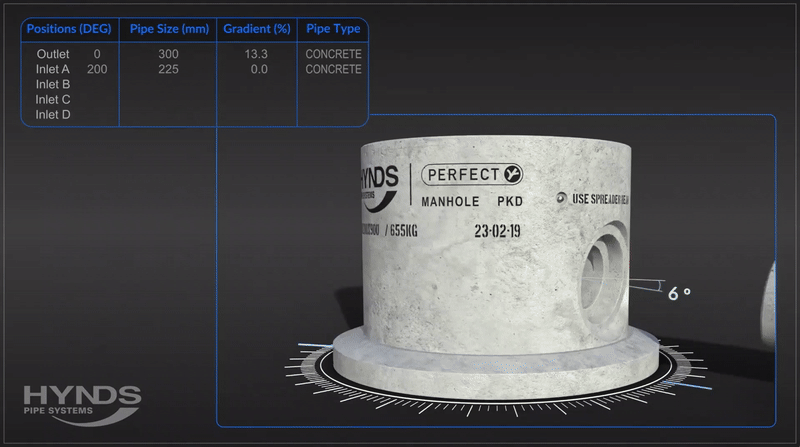

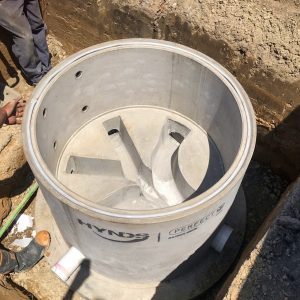

Hynds Perfect Manhole prebenching based on your custom requirements

Full height and benching flexibility are available from our automated production range with a separate fabricated range available for extra-large diameters or connections, or non-standard loading conditions. (Refer to Hynds Technical Services for non-standard conditions such as extra high loadings or hydraulic requirements, etc). PERFECT® is suitable with Concrete, PVC, PE, and Bosspipe pipeline connections.

Hynds Perfect Manhole custom based on your specified requirements

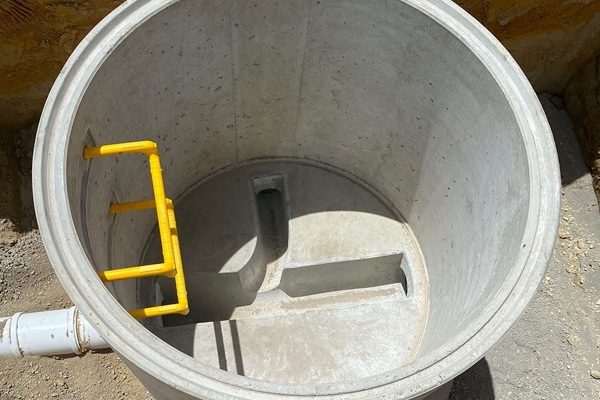

The PERFECT® Manhole Base will come with steps pre-installed.

Benefits

Minimise Effort On Site

  • Preplan your manhole structure and build a program to minimize construction effort.
  • The modular solution eliminates the need for wet trades (benching and haunching), leading to rapid construction compared to conventional methods.

Safer Construction

  • Less work within the excavation zone.
  • No requirement to bench the manhole in a confined space.
  • No requirement to haunch a pipe connection outside the manhole base.
  • No need to thread steps through the wall and bolt externally.

Target Zero Infiltration

  • The Hynds PERFECT® Manhole is designed to prevent external water infiltration.
  • This is achieved through a combination of rubber gasket riser and pipe connector seals, and the Pinnacle® Step System.
Complete the order form and reserve your order date. Download Form
Technical Guide

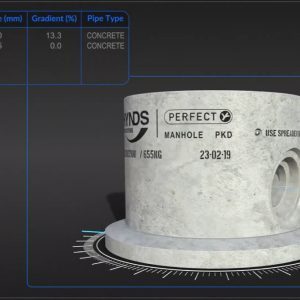

How it works

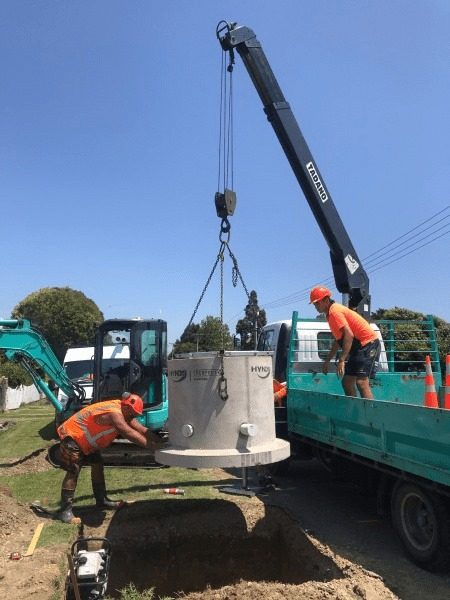

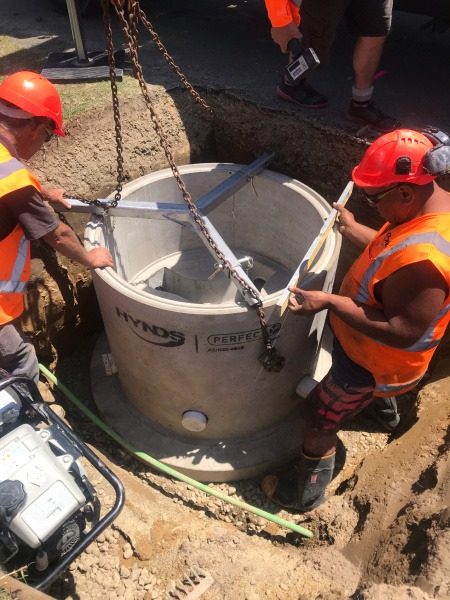

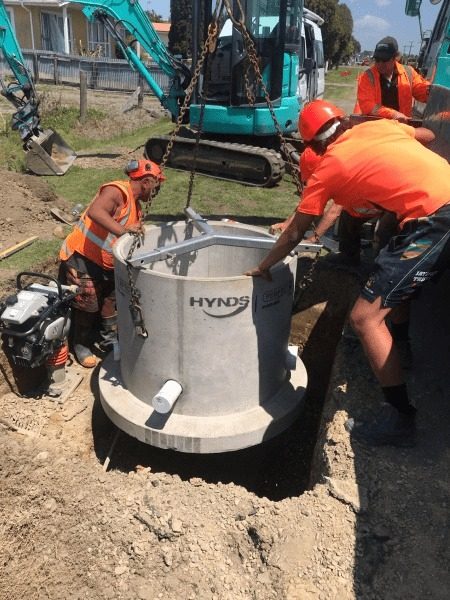

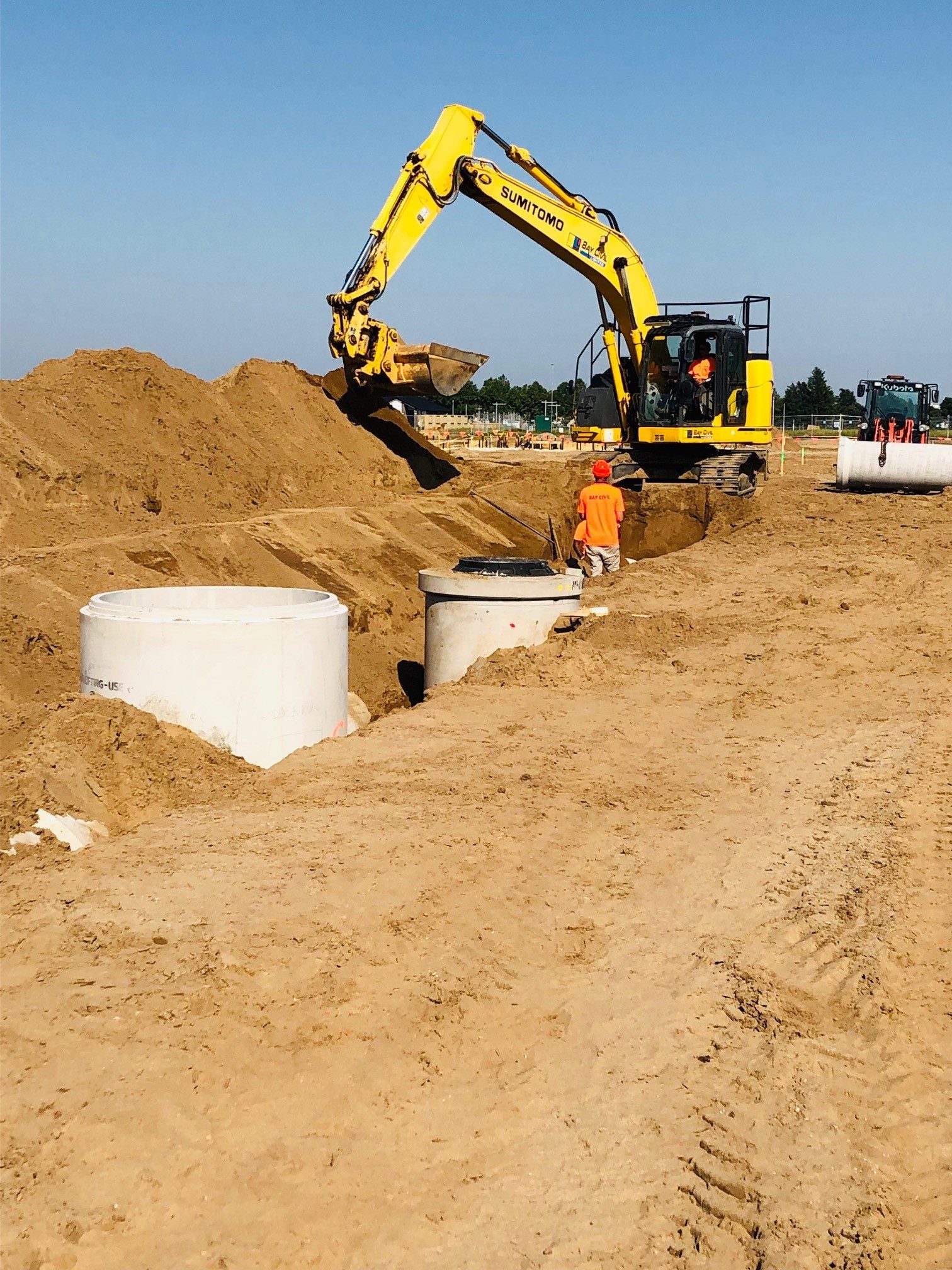

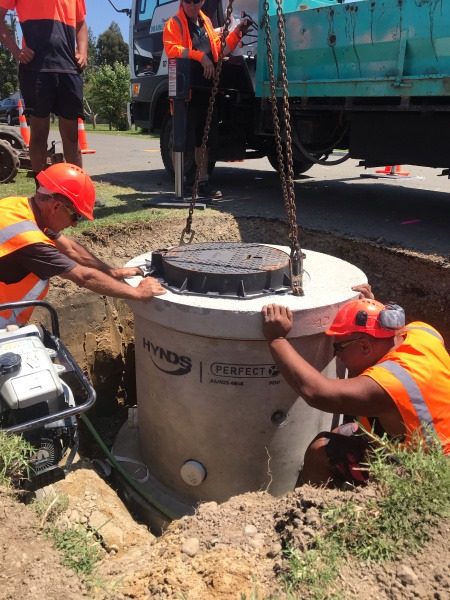

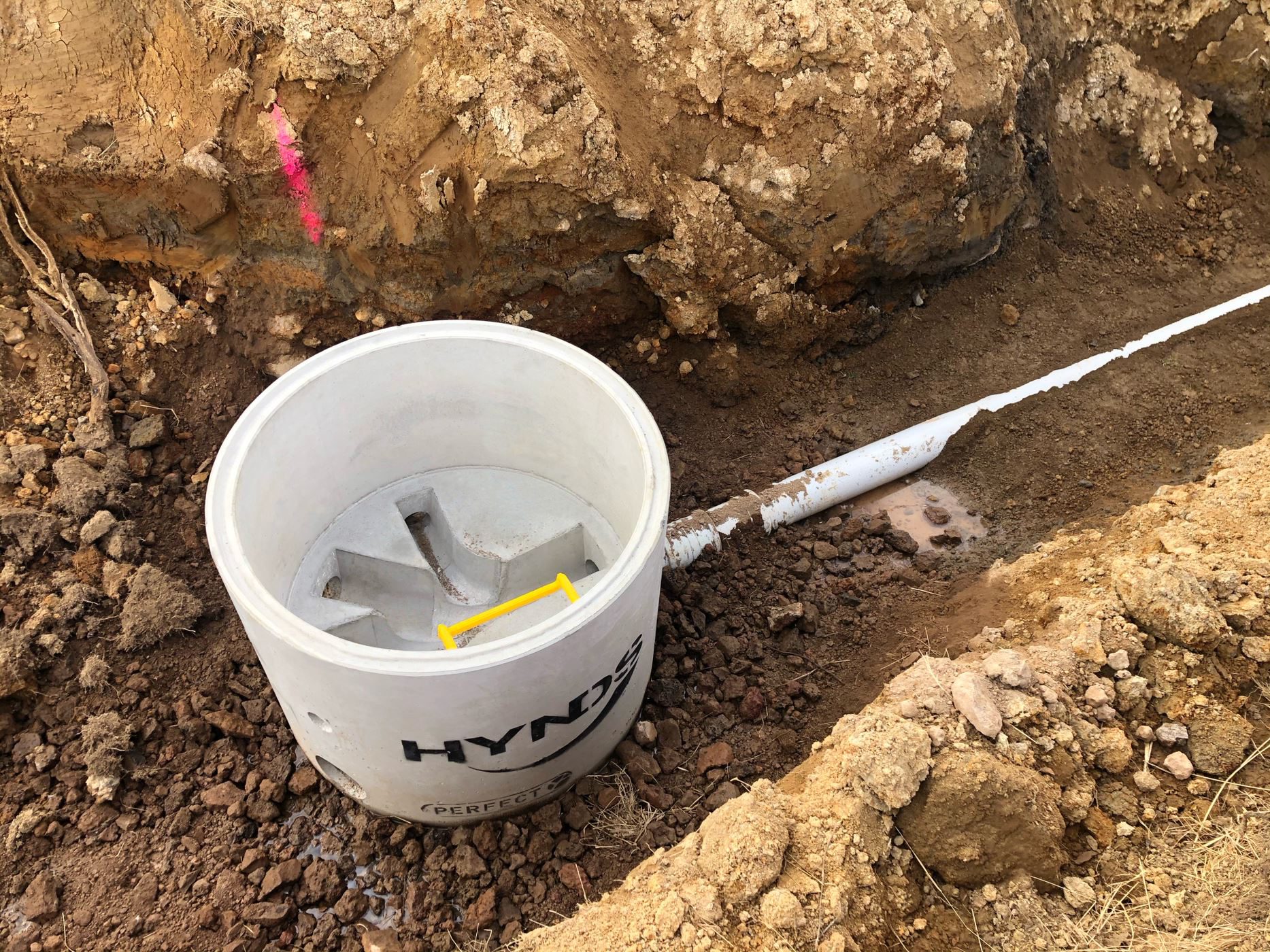

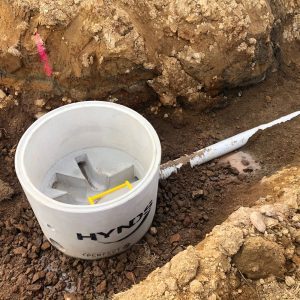

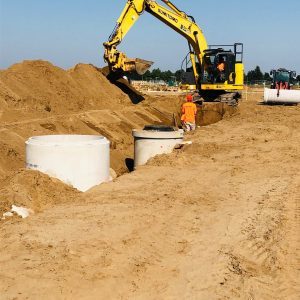

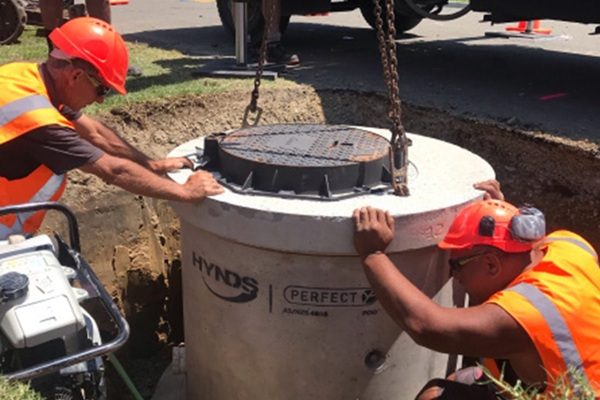

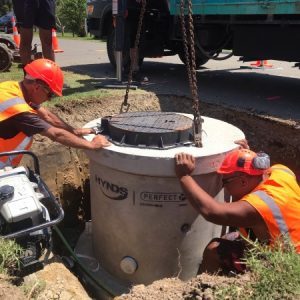

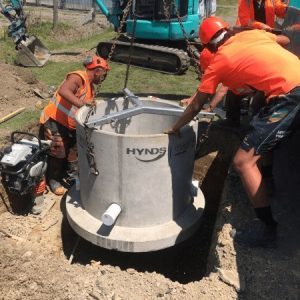

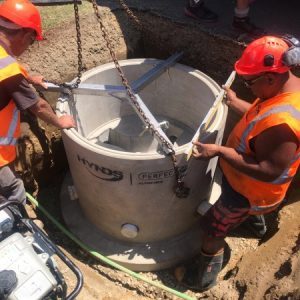

Prebenched Perfect Manholes in Action

Lower Carbon Options Available

Same Strength, Less Carbon. Why Settle for anything less than Hynds LC® lower carbon concrete range
